Brightness (Lumens) : |
2000 ANSI |
|
Contrast (Full On/Off) : |
300000:1 |
|
Variable Iris: |
Yes |
|
High Brightness: |
|
ANSI Lumens: |
** |
|
Contrast Ratio: |
** |
|
High Contrast: |
|
ANSI Lumens: |
** |
|
Contrast Ratio: |
** |
|
Audible Noise: |
** |
|
Weight: |
** |
|
Size (inches) (HxWxD) : |
** |
|
|
Power |
|
Zoom: |
Power, 2.00:1 |
|
Throw Dist (feet) : |
11.5 - 19.7 |
|
Image Size (inches) : |
60.0 - 200.0 |
|
Optional Lenses: |
** |
|
Digital Zoom: |
** |
|
Digital Keystone: |
** |
|
Lens Shift: |
Horz & Vert |
|
Warranty: |
1 Year |
|
Performance: |
|
|
H-Sync Range: |
** |
|
V-Sync Range: |
** |
|
3D Projector: |
3D Ready |
|
Compatibility: |
|
HDTV: |
720p, 1080i, 1080p/60 |
|
EDTV/480p: |
Yes |
|
SDTV/480i: |
Yes |
|
Component Video: |
Yes |
|
Video: |
Yes |
|
Digital Input: |
HDMI |
|
Computers: |
Yes |
|
|
3 LCD |
|
Native: |
1920x1080 Pixels |
|
Maximum: |
** |
|
Aspect Ratio: |
16:9 (HD) |
|
|
200W ** |
|
Life: |
4000 hours |
|
Eco-Mode Life: |
5000 hours |
|
Quantity: |
1 |
|
Speakers: |
n/a |
|
Max Power: |
** |
|
Voltage: |
240V |
|
|
|
|
Special: |
3D Projection |
|
|
|
[CLICK HERE FOR MORE PRODUCT SPECIFCATION IN PDF FORMAT]

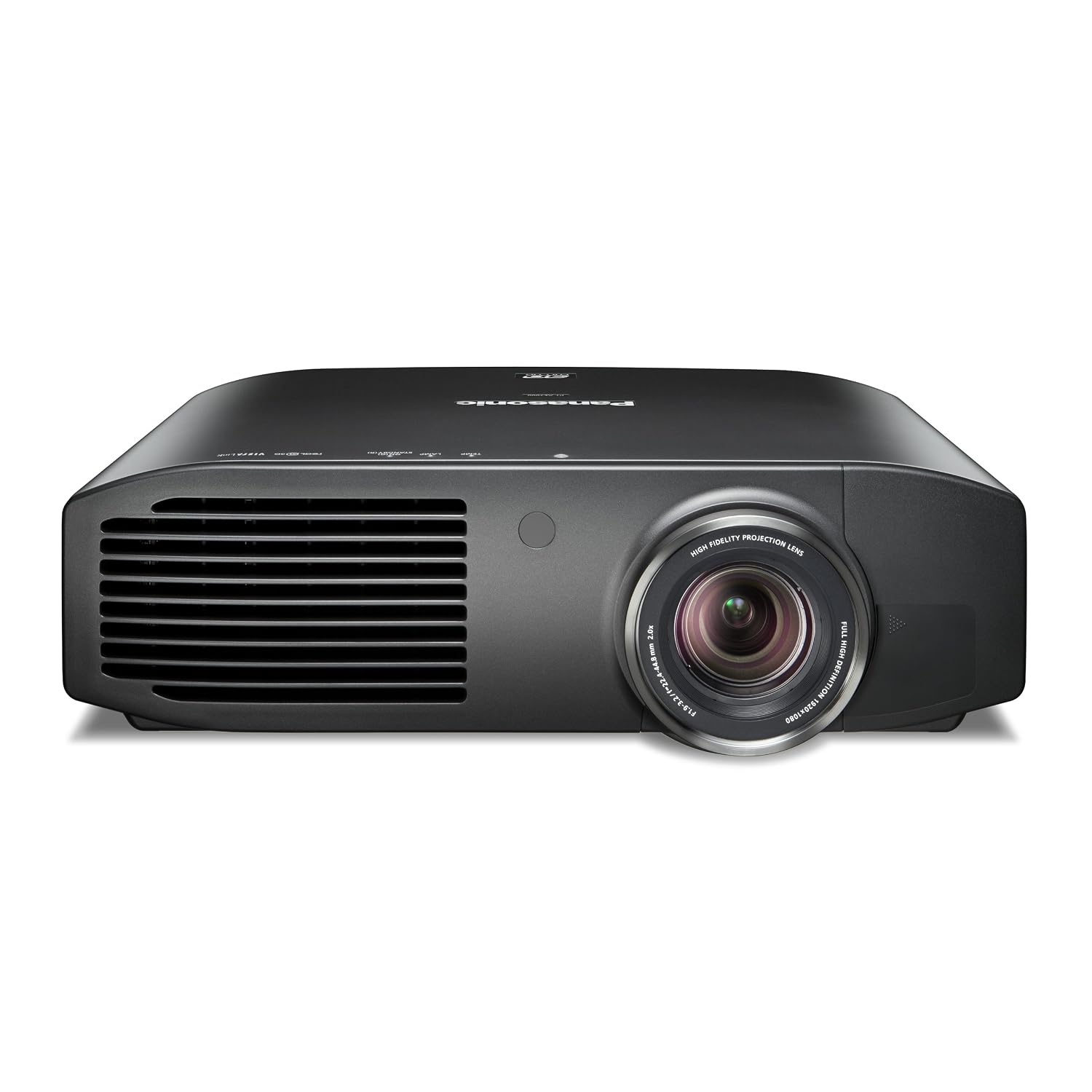

The new 200-W Red-Rich Lamp increases the luminous efficiency of the projector to achieve brighter images with excellent color purity. Able to produce a stunning brightness of 2,000 lm, the PT-AE7000 unleashes the beauty of 2D/3D full-HD expression for viewing on various screen sizes.
To assure maximum clarity and sharpness in full-HD images, this advanced optical system employs a full-HD-optimized lens unit comprising of 16 lens elements in 12 groups, including two large-diameter aspherical lenses and two high-performance ED (extra-low dispersion) lenses. Each lens is carefully aligned to assure a uniform focusing balance from the center to the edges of the screen. As a result, the PT-AE7000 produces stunningly clear and beautiful images.
The PT-AE7000 Full-HD LCD panels provide more brightness with higher aperture ratio. The panels are also designed for 480Hz processing capability for brighter 3D image. These high-precision panels use vertically aligned liquid crystal molecules with inorganic alignment layers. When no voltage is applied, the molecules are aligned perpendicular to the glass substrate, so there is minimal light leakage, providing higher contrast.
The Pure Contrast Plates in the PT-AE7000 use a high-precision crystalline material that is carefully matched to the characteristics of the LCD panels to effectively correct the passage of light exiting the panels. This enables the projector to block unwanted light leakage and successfully increases the dynamic range. It works together with the Pure Color Filter Pro and Dynamic Iris Pro to achieve an astounding contrast ratio of 300,000:1.
The optical filter optimizes the light spectrum from the UHM projector lamp, helping to produce deeper blacks while improving purity levels in the three primary colors (red, green and blue). This advanced filter system improves color purity to cover a range that extends from the HDTV standard (Rec. 709 mode)*1 to the color gamut used in digital cinema*2. This gives images the deep, rich coloring that distinguishes movie images.
*1 A setting that supports the 6,500K color temperature recommended in the HDTV standard (ITU-R BT.709).
*2 Specifications put forth by the Society of Motion Picture and Television Engineers (SMPTE) PR431-2.
This intelligent iris system works by analyzing the brightness level of each image using a histogram, then adjusting the lamp power, iris and gamma curve* accordingly to create the ideal image. The adjustments are made virtually frame by frame. This helps the projector achieve a wide dynamic range with swift smoothness for added beauty in both dark and bright scenes.
* Parameters for adjusting the output brightness gradation level according to the input signal.
While many LCD projectors suffer from a “chicken wire” effect, Panasonic’s pursuit of the highest possible image quality has successfully overcome this device limitation through the incorporation of Smooth Screen technology.
This uses the double refraction property of crystals to arrange pixels on a screen with no gaps between them.
Seven different picture modes (normal, dynamic, Rec. 709, D-cinema, cinema 1, cinema 2 and game mode for reduced frame delay) automatically detect 2D, 3D signal for optimized picture quality
Up to six settings can be stored in the Lens Memory, including zoom and focus positions for projecting in the normal 16:9 or 4:3 image ratio, and wide cinema projection settings. These memories can be recalled manually or can be set for automatic switching. The projector is able to detect 2.35:1 and 16:9 source and retrieve the stored setting automatically. This Lens Memory function lets you easily enjoy images with different image ratios on a wide 2.35:1 screen for an immersive movie theater-like experience.
A 2x optical power zoom/focus lens and a lens shift function together make it possible to project a 120-inch picture from as close as 3.6 meters (11 feet 10 inches) to the screen or as far as 7.2 meters (23 feet 7 inches) away. In addition, the image can be shifted ±100% vertically, and ±26% horizontally. This gives you outstanding setup flexibility. If you choose to ceiling-mount the projector, you can zoom and focus by remote control.
With the PT-AE7000 you can view the waveforms on the screen and adjust the settings both automatically and manually as you prefer.
The gamma curve can be flexibly controlled, allowing precise calibration according to the signal source and environment. Brightness (Y), R, G and B can each be adjusted at any nine points. Adjustment point positions can be shifted both horizontally and vertically to bring out the desired gradation level.
You can freeze any scene you wish, and then make adjustments while easily comparing the original image and the adjusted image side by side.
This color correction system enables free color control in two different modes. The Point Color Correction mode lets you pick a point in the image and adjust that color without affecting the neighboring colors. The Six Color Correction mode enables independent adjustment of red, green, blue, cyan, magenta and yellow.
HDMI™ with x.v.Color™ and Deep Color
The PT-AE7000 has three HDMI input terminals for digital transmission without image degradation. The HDMI input terminals also support Deep Color and the x.v.Color color space. Deep Color provides 10-bit (over 1.07 billion) and 12-bit (over 68.7 billion) color depths for smooth gradation between colors, while x.v.Color compliance reproduces natural, lifelike images.*
* Effective in Rec. 709 image mode.
Programmable 12V Trigger for Automated Theater Setup
Two 12V triggers are provided.* Since the input and output can be set independently (menu selectable), they can link flexibly with powered screens, room light and powered curtains. When combined with the Intelligent Lens Memory, they let you create a truly classy home theater.
* The trigger terminals also operate as the 3D shutter outputs to connect the optional 3D IR transmitter ET-TRM110.
The PT-AE7000 supports VIERA Link. If your home theater system contains VIERA Link-ready equipment, projection can be started by using only the remote control unit of the PT-AE7000, regardless of whether the source is a Blu-ray Disc or a TV program stored on an HD recorder. This eliminates the need for hassling with several remote controls.*
* Cannot be used simultaneously with TV that supports VIERA Link. Some operations may not be available depending on the equipment. In this case, use its own remote control to operate the equipment.
Panasonic’s proprietary lamp drive system helps maintain lamp performance, resulting in a up to 5,000-hour lamp replacement cycle. For easy maintenance, you can replace the filter from the side and the lamp from the top of the projector. The dust filter and lamp are easily replaced even after the PT-AE7000 is installed on the ceiling.
* When a lamp power is set to ECO. The lamp replacement cycle is up to 5,000 hours when the lamp mode is set to NORMAL. The values above are maximum values when they are used in cycles of being turned on for 2 hours and off for 0.25 hours. When the lamps are turned on and off more frequently, the lamp replacement cycle is shortened. The usage environment affects the lamp replacement cycle.
• 16-bit (full 12-bit) gamma correction for natural gradations.
• 3D noise reduction for high-precision noise detection and reduction.
• Scene-adaptive MPEG noise reduction effectively blocks regular noise and minimizes mosquito noise.
• Scene adaptive resizing LSI improves quality when resizing 480p images or those from other sources with resolution lower than the PT-AE7000 native resolution.
• 24p compatible.
• Progressive cinema scan (3/2 pulldown) and HD IP.
• Auto 3D input format select for frame packing, side by side, and top and bottom. Manual selection is also possible.
• Selectable frame response.
• Independent horizontal/vertical sharpness adjustment.
• Featuring a wide range of aspect modes, including ones for anamorphic lenses. (JUST/4:3/16:9/S16:9/14:9/ZOOM1/ZOOM2/H-FIT/V-FIT)
NOTE: The selectable modes vary depending on the input signal.
• Up to sixteen sets of PICTURE adjustment settings can be stored in memory with custom names that make them easy to remember (PICTURE MEMORY).
• Masking function to match the desired projection area to the screen.

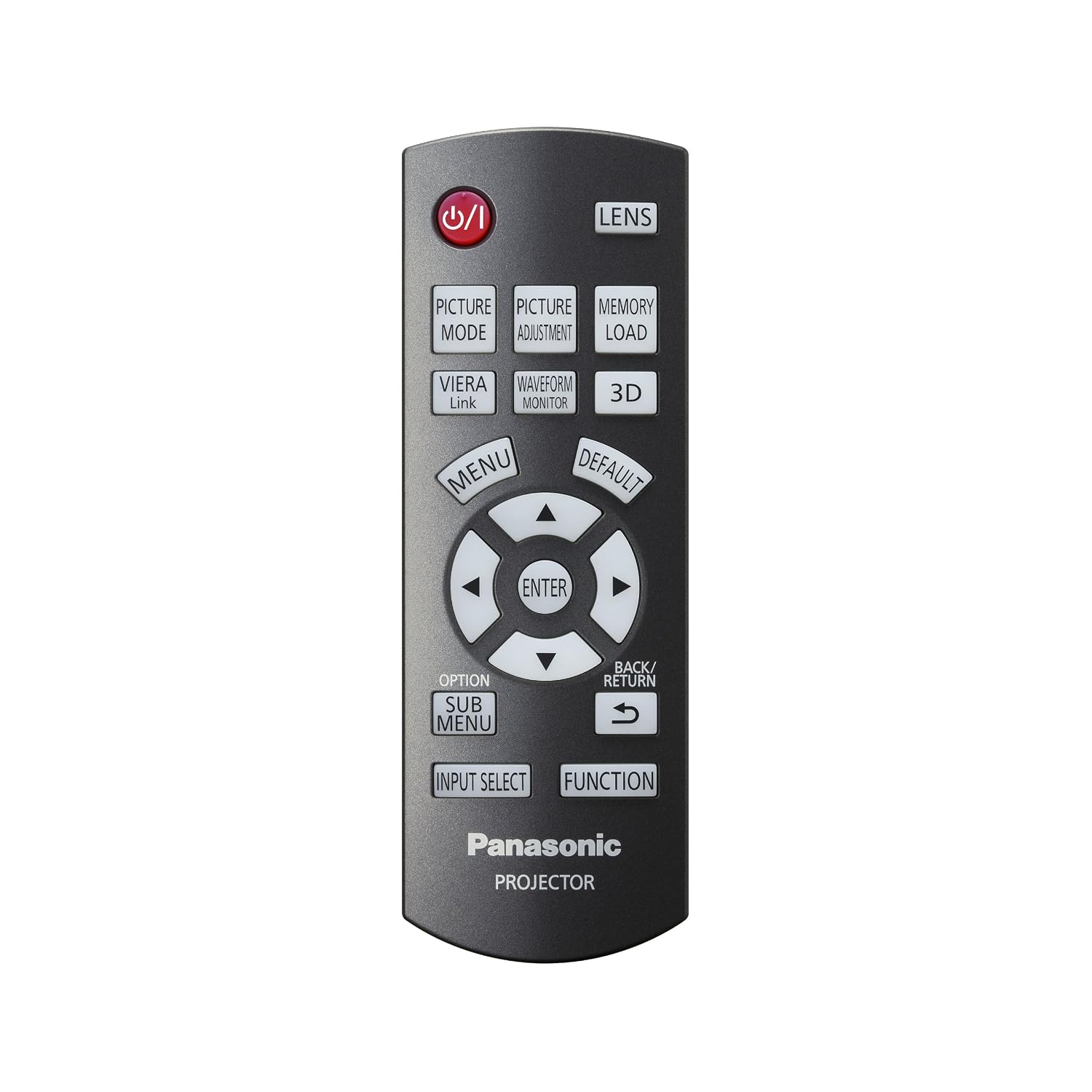

• User-friendly ergonomic remote control.
• Built-in test pattern including color bar and gray scale.
• On-screen input guidance.
• Auto input search.
• Quiet operation: 22 dB (lamp power: ECO).
• NORMAL/ECO lamp power selection.
Each Panasonic projector is produced by a vertically integrated production process, which extends from R&D to manufacturing, at the Panasonic factory in Japan, under strict quality control. This ensures stable, top-quality performance in every product.
|
